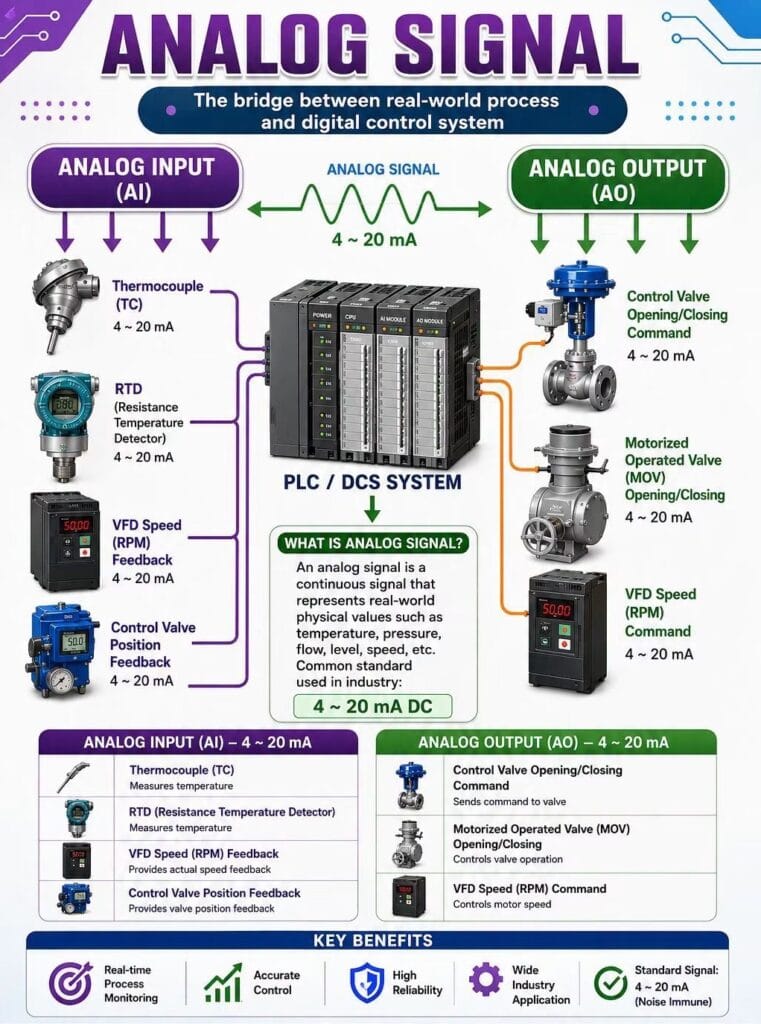

In industrial automation, analog 4-20mA signal acts as the critical bridge connecting physical field equipment and digital PLC/DCS control systems. Unlike simple on-off proximity switch digital signals, analog signals transmit continuous real-time data such as distance, temperature, pressure, flow rate and motor speed, enabling precise real-time monitoring and closed-loop regulation for production lines. This article breaks down analog input (AI) and analog output (AO) based on the standard industrial diagram.
1. Core Definition of Industrial Analog Signal
An analog signal is a continuous electrical signal that reflects real physical quantities. The most widely adopted global standard in manufacturing, chemical and mechanical industries is 4~20mA DC current signal:
- 4mA stands for the minimum measuring value (zero point)
- 20mA represents the full-scale maximum value This standard boasts strong anti-interference ability against electromagnetic noise from inverters, welding machines and high-power motors, avoiding signal distortion over long-distance wiring.
2. Analog Input (AI): Collect Field Sensor Data to PLC
Analog Input modules receive 4-20mA feedback signals from all kinds of field measuring devices and transfer real-world data into the PLC/DCS system for calculation and display. Common AI signal devices include:
- Thermocouple (TC): Captures workshop equipment temperature data
- RTD Temperature Transmitter: Delivers accurate medium temperature reading
- VFD Speed Feedback: Feeds back actual motor running RPM value
- Valve Position Transmitter: Sends real-time opening position of control valves
For analog proximity sensors, the 4-20mA AI signal continuously outputs detection distance values, allowing the PLC to judge exact metal position instead of only simple “detected / undetected” switching signals.
3. Analog Output (AO): PLC Sends Control Commands to Field Actuators
Analog Output modules convert digital instructions from PLC into 4-20mA analog signals to drive on-site execution equipment for automatic adjustment. Typical AO controlled devices:
- Pneumatic Control Valve: Adjust opening degree via AO signal to regulate liquid/gas flow
- Motorized Operated Valve (MOV): Receive commands to open or close pipeline valves accurately
- Variable Frequency Drive (VFD): Regulate motor running speed according to 4-20mA speed commands
4. Key Advantages of 4-20mA Analog Signal
- Real-time process monitoring: Track continuous changing physical parameters without intermittent signal loss
- High-precision closed-loop control: Realize precise adjustment of speed, flow and temperature on automated lines
- Outstanding reliability: Current signal resists EMI interference from heavy industrial environments
- Universal industry compatibility: Supported by all mainstream PLC, transmitters and analog proximity sensors
- Noise immune 4-20mA standard: Stable transmission even with long wiring distances
5. HongSton 4-20mA Analog Proximity Sensors Matching PLC AI Modules
Besides standard PNP/NPN digital proximity switches, HongSton supplies full series analog inductive sensors with native 4~20mA output, perfectly compatible with all PLC analog input modules:
- Continuous distance output from 4mA to 20mA for precise position detection
- High anti-interference EMC circuit design, stable performance near inverters and welding equipment
- Complete M12 / M18 / M30 cylindrical sizes, direct replacement for international brand analog sensors
- CE certified, 24-month full warranty, factory failure rate controlled under 0.3%
- Professional engineers offer AI/AO wiring and PLC parameter matching guidance
Since 2020, our analog signal proximity sensors have been exported to Southeast Asia, Australia and Poland, widely applied in automated assembly, CNC machining and chemical pipeline monitoring projects. We focus on R&D investment rather than expensive advertising, delivering cost-effective analog sensing solutions for global factory automation.
Final Summary
4-20mA analog signal is the foundation of precise industrial automation. Analog Input (AI) collects field measurement data, while Analog Output (AO) executes PLC control orders, forming a complete closed-loop control system. If you need analog proximity sensors with standard 4~20mA signal for your PLC/DCS equipment, HongSton provides fully compatible, stable long-life models for all production line scenarios.
