How to Select Inductive Proximity Sensors for Food Processing Plants? Hongston LS8 Plug-and-Play Sensor Avoids Production Shutdown

Food processing factories face unique harsh operating conditions: frequent high-pressure water washing, dust, humidity, and strict continuous production requirements. A faulty proximity sensor will directly halt packaging, conveying, filling assembly lines, causing huge economic losses. Many plant managers struggle with three common pain points when sourcing proximity switches:

1. Incorrect sensor selection leads to frequent failure under damp, washdown food workshop environments;
2. Complex disassembly & wiring takes hours to replace sensors, forcing full production line shutdown;
3. Well-known international brand sensors deliver stable performance yet carry excessive purchase costs, squeezing profit margins.

This guide systematically explains how food manufacturers should select qualified inductive proximity sensors, and introduces Hongston LS8 sensor as a cost-effective drop-in replacement solution for global food automation lines.

Key Criteria for Food Processing Plants to Choose Proximity Switches

For food & beverage automated production lines (conveyor systems, packaging machinery, filling equipment), 5 core selection standards must be met one by one:

1. High Ingress Protection Rating for Washdown Environments

Food workshops require regular water jet cleaning to remove food residues, grease and debris. Sensors must reach at least IP67 protection level, fully dustproof and resistant to temporary water immersion, preventing short circuits and internal component damage from splashing water and cleaning detergents. Low-grade sensors without reliable sealing will break down within weeks under repeated washing.

2. Easy & Rapid Installation, No Long Production Stop

Food production runs non-stop for shifts. If sensor replacement needs cutting cables, re-modifying mounting brackets or re-programming PLC parameters, the line has to pause for a long time. Plug-and-play, standardized mounting sensors can be swapped in minutes with zero downtime.

3. Electrical Compatibility With Existing Control Systems

The sensor must support universal DC voltage range, both NPN/PNP output, NO/NC switch signals, matching mainstream PLC brands on the market, without extra signal converters or wiring modifications.

4. Stable Detection Precision & High Anti-Interference Performance

Conveyors run at high speed, so sensors need high response frequency and low repeat error to accurately detect metal workpieces, packaging fixtures and mechanical positions without missed triggers or false signals, avoiding jams and product rejects.

5. Long Warranty & Low Failure Rate, Lower Long-Term OPEX

Frequent sensor after-sales repairs and replacements increase maintenance labor costs. Reliable manufacturers offer long official warranty with ultra-low product failure rate, cutting annual spare part expenses for food factories.

Hongston LS8 Inductive Proximity Sensor: Perfect Match for Food Production Lines

Hongston LS8 inductive proximity sensor is tailor-designed for food processing, packaging and conveying automation scenarios, fully meeting all the above selection requirements, with standout advantages over conventional sensors and famous brand alternatives.

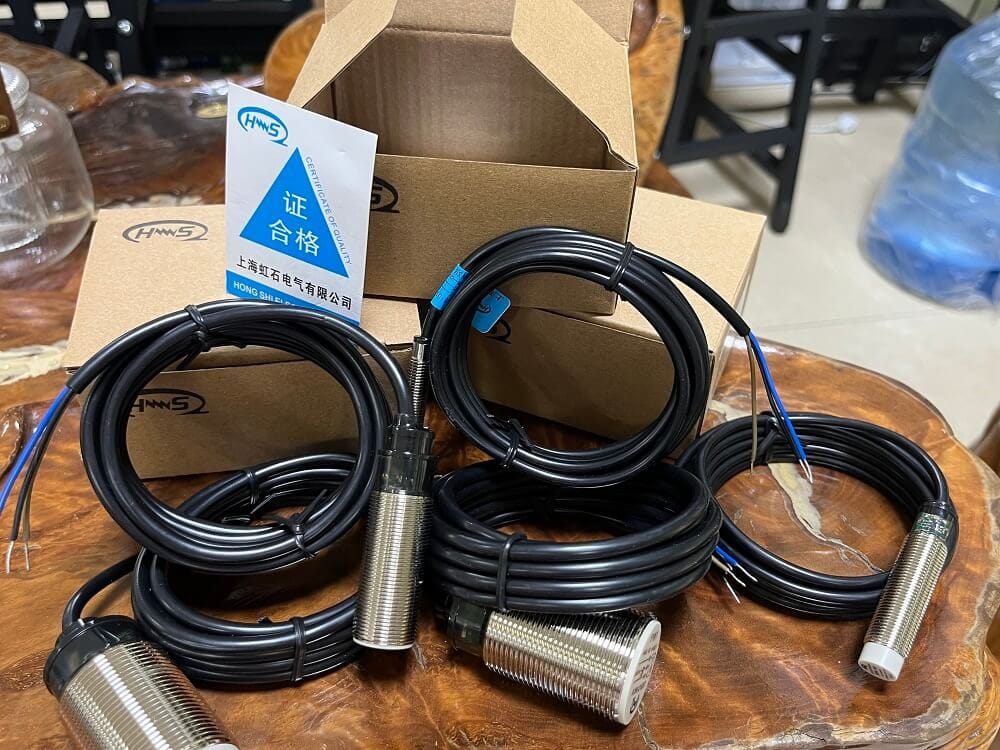

1. IP67 Sealed Metal Housing, Adaptable to Food Workshop Washdown

LS8 adopts solid metal housing with full sealing structure, certified IP67 per IEC60529 & EN60529 standards. It fully blocks dust, food powder, splashing water and diluted cleaning agents, stably working under -25℃ ~ +70℃ fluctuating ambient temperature, ideal for long-term continuous operation in wet food processing workshops.

2. Plug-and-Play Quick Replacement, Zero Production Line Shutdown

The LS8 supports dual installation modes (embedded / non-embedded) and two wiring options (fixed cable + connector plug). It follows universal industry standard dimensions and wiring definitions, directly fits original mounting holes and cable sockets of major brand sensors. On-site maintenance staff can finish sensor swap within several minutes, no bracket rework, no PLC parameter reset, completely avoiding lengthy production halt caused by component replacement.

3. Full Electrical Compatibility, Direct Drop-In Replacement for Famous Brands

• Wide 10–30VDC universal DC power supply, compatible with all standard industrial control cabinets;
• Dual output types (PNP / NPN) + 3 signal options (NO / NC / NO+NC); Totally interchangeable with mainstream international brand proximity switches. Food factories do not need to replace existing control modules or redesign circuits when switching to Hongston LS8, seamless migration with zero extra transformation cost.

4. Professional Precision Performance, Consistent Quality With Top Brands

• Dual sensing distance options: 1mm / 2mm; repeat accuracy < 3%;
• Fast 1KHz response frequency, stable detection for high-speed food conveying lines;
• Ultra-low power consumption (<15mA), max output current up to 150mA; Strictly tested per GB/T14048.10-2016 & IEC60947-5-2:2012 international standards. Its detection stability, service life and anti-interference ability reach the same level as well-known imported sensor brands, eliminating concerns about quality downgrade after replacement.

5. Higher Cost Performance + Official 2-Year Full Warranty

Compared with big-name imported sensors with identical specifications, Hongston LS8 delivers equivalent industrial-grade quality at a far more competitive factory-direct price, greatly reducing spare part procurement costs for food manufacturers.

Meanwhile, we provide a full 2-year official warranty, with overall product failure rate controlled below 0.3% within the warranty period. Our local technical support team can respond rapidly to solve on-site faults, drastically lowering the long-term maintenance cost of food production lines.

LS8 Complete Technical Parameter Table

表格

Item	Hongston LS8	Hongston LS12
Model	LS8	LS12
Supply Voltage	10…30VDC	10…30VDC / 90…250VAC
Switch Output	PNP / NPN	PNP / NPN
Output Mode	NO / NC / NO+NC	NO / NC / NO+NC
Sensing Distance	1mm / 2mm	2mm / 4mm
Max Output Current	≤150 mA	≤200 mA
Voltage Drop	DC＜4V	DC＜4V, AC＜10V
Consumption Current	＜15mA	＜15mA
Repeat Accuracy	＜3%	＜3%
Response Frequency	1KHz	500Hz/20Hz
Operating Temperature	-25℃ ~ +70℃	-25℃ ~ +70℃
Insulation Resistance	≥50 MΩ	≥50 MΩ
Housing Material	Metal	Metal
Protection Class	IP67 (IEC529 & EN60529)	IP67 (IEC529 & EN60529)
Mounting Method	Embedded / Non-embedded	Embedded / Non-embedded
Wiring Type	Cable / Connector	Cable / Connector
Compliance Standard	GB/T14048.10-2016, IEC60947-5-2:2012	GB/T14048.10-2016, IEC60947-5-2:2012

Application Scenarios of LS8 Sensors in Food Factories

Hongston LS8 inductive proximity sensors are widely installed on full sets of food automated equipment:

1. Conveyor belt metal fixture positioning & workpiece counting;
2. Food filling machine barrel in-place detection;
3. Packaging machine carton / can positioning, cover presence check;
4. Sorting machine mechanical limit & stroke detection.
