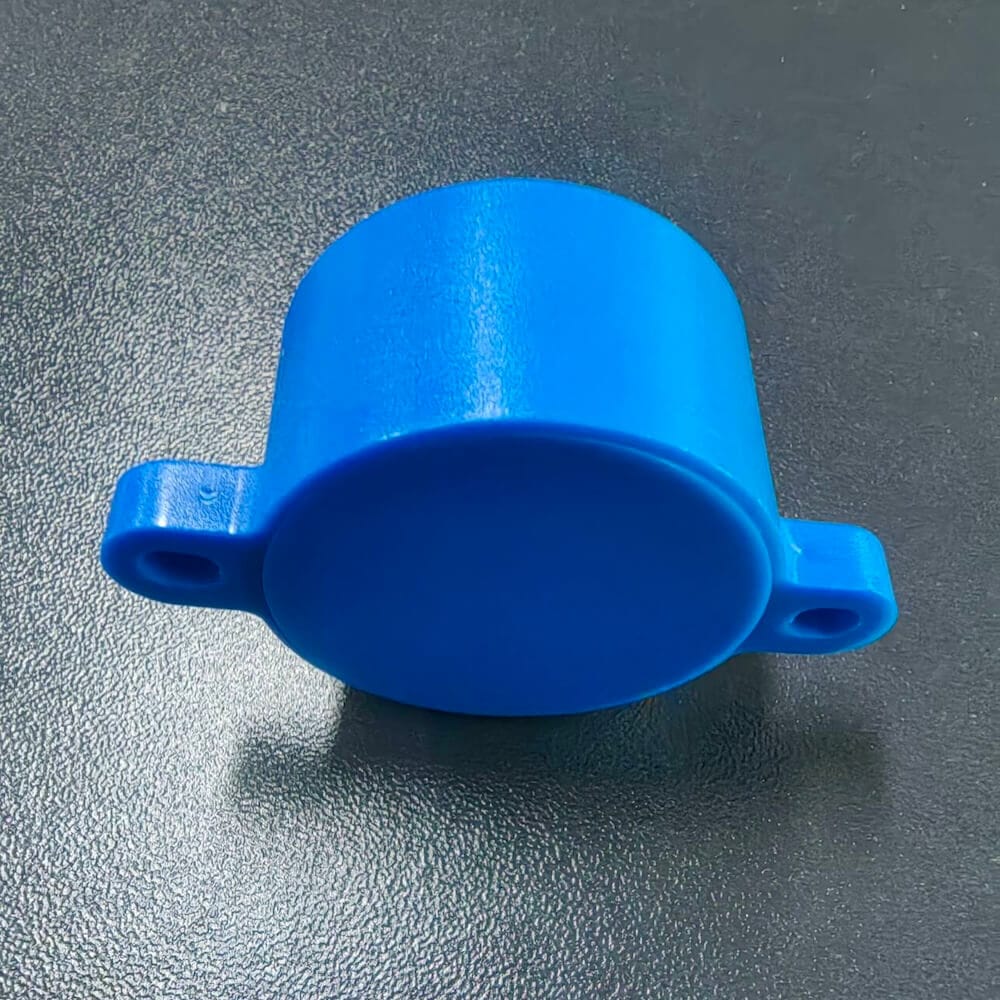

S48 Inductive Proximity Sensor | 20mm Non-flush, 10-30VDC/90-250VAC
LS48 inductive proximity sensor with 20mm non-flush sensing range, plastic housing, and IP67 protection. Supports PNP/NPN output, NO/NC/NO+NC states, and dual power supply for reliable metal detection in industrial automation.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
LS48 / LS55 / LU1 Inductive Proximity Sensors – Plastic Housing Series
The LS48, LS55, and LU1 inductive proximity sensors are compact, non-contact metal detection solutions designed for reliable performance in diverse industrial automation environments. With flexible output options, IP67-rated protection, and support for both DC and AC power (where applicable), these sensors deliver consistent accuracy in metal object detection.
Key Features (Series Common)
- Flexible Power Supply: Supports 10…30VDC for all models; LS48/LS55 also compatible with 90…250VAC for broader integration
- Configurable Output: PNP/NPN output options with NO/NC/NO+NC states (LS48/LS55) or NO/NC states (LU1) to suit different control systems
- Durable Plastic Housing: IP67 protection grade, resistant to dust, moisture, and common industrial contaminants
- Wiring Flexibility: Available in cable or connector versions for convenient on-site installation and maintenance
Technical Specifications (Side-by-Side Comparison)
| Parameter | LS48 | LS55 | LU1 |
|---|---|---|---|
| Product Model | LS48 | LS55 | LU1 |
| Power Supply | 10…30VDC / 90…250VAC | 10…30VDC / 90…250VAC | 10…30VDC |
| Output Type | PNP / NPN | PNP / NPN | PNP / NPN |
| Switch State | NO / NC / NO+NC | NO / NC / NO+NC | NO / NC |
| Sensing Distance | 20mm | 25mm | 5mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Voltage Drop | DC: <4V; AC: <10V | DC: <4V; AC: <10V | DC: <4V; AC: <10V |
| Current Consumption | <15mA | <15mA | <15mA |
| Repeat Accuracy | <3% of sensing distance | <3% of sensing distance | <3% of sensing distance |
| Response Frequency | 200Hz (DC) / 10Hz (AC) | 200Hz (DC) / 10Hz (AC) | 1kHz (DC) |
| Operating Temperature | -25℃ ~ +70℃ | -25℃ ~ +70℃ | -25℃ ~ +70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush | Non-flush | Flush |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
Applications
These inductive sensors are widely used in:
- Conveyor line metal object detection
- Packaging machinery position control
- Automated assembly lines
- Material handling equipment
- General industrial automation systems
Customization of specifications (e.g., special cable lengths, output configurations) is available to meet your specific application requirements. Contact us to discuss your project needs.
