LU23 Linear Inductive Proximity Sensor, 5mm Sensing Distance, 10-30VDC, IP67
LU23 linear inductive proximity sensor is a compact, reliable metal detection solution for industrial automation. 10-30VDC wide voltage, PNP/NPN output, 5mm sensing distance, 500Hz response frequency. IP67 protection, non-flush mounting, cable/connector wiring, compliant with international standards.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

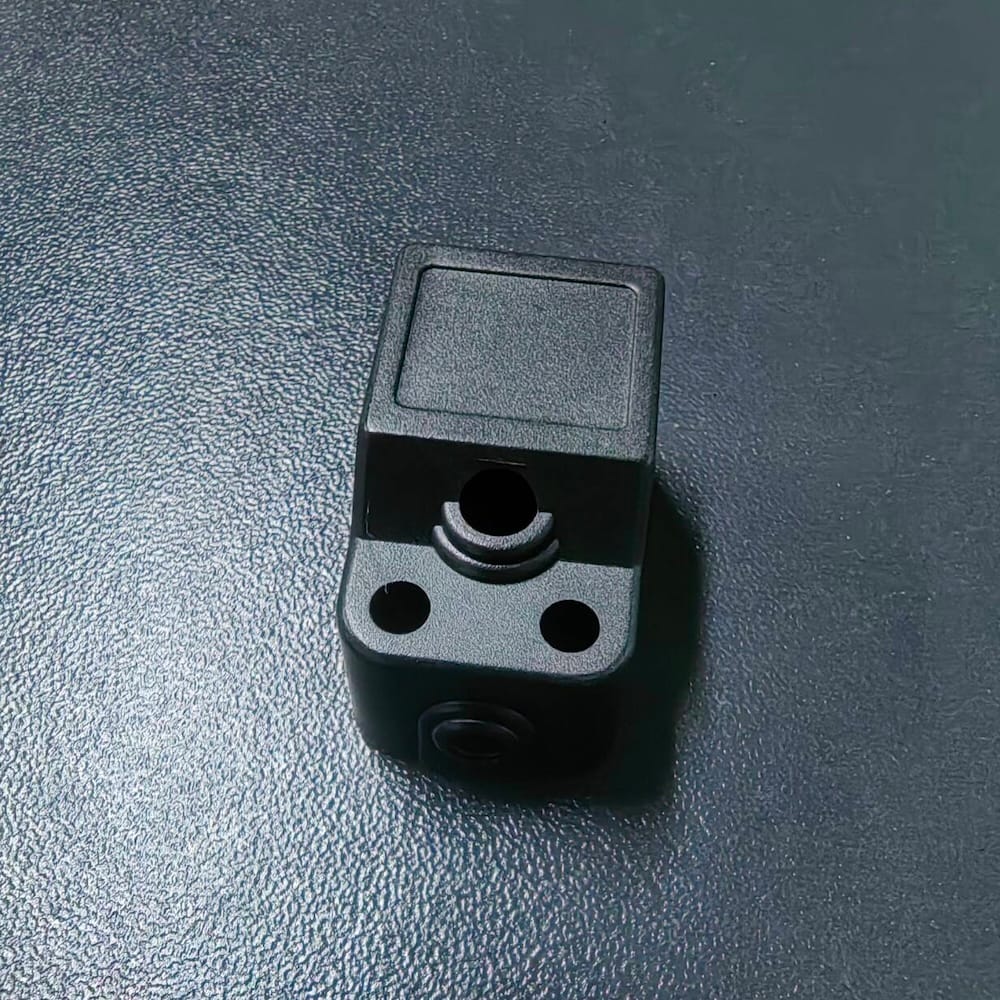

The LU23 linear inductive proximity sensor is a compact and cost-effective model for metal detection in industrial automation. Featuring durable plastic housing and IP67 dustproof and waterproof rating, it works stably in harsh workshop environments. It adopts 10-30VDC wide voltage power supply, with optional PNP/NPN output and NO/NC working mode.
With 5mm sensing distance and high 500Hz response frequency, the LU23 ensures high repeat accuracy and reliable long-term operation. It is designed for non-flush mounting, supports cable or connector wiring, and is widely used in machine tools, conveyor lines and automated production equipment.
This sensor complies with international standards: GB/T14048.10-2016 / IEC60947-5-2:2012.
Technical Parameters
| Item | LU23 | LU24 | LU25 |
|---|---|---|---|
| Product Model | LU23 | LU24 | LU25 |
| Supply Voltage | 10…30VDC | 10…30VDC | 10…30VDC/90…250VAC |
| Switch Output | PNP/NPN | PNP/NPN | PNP/NPN |
| Output Status | NO/NC | NO/NC | NO/NC/NO+NC |
| Sensing Distance | 5mm | 4/5mm | 5mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% | ＜3% |
| Response Frequency | 500Hz | 500Hz | 500Hz/10Hz |
| Operating Temperature | －25℃~+70℃ | －25℃~+70℃ | －25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush Mount | Flush / Non-flush Mount | Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
