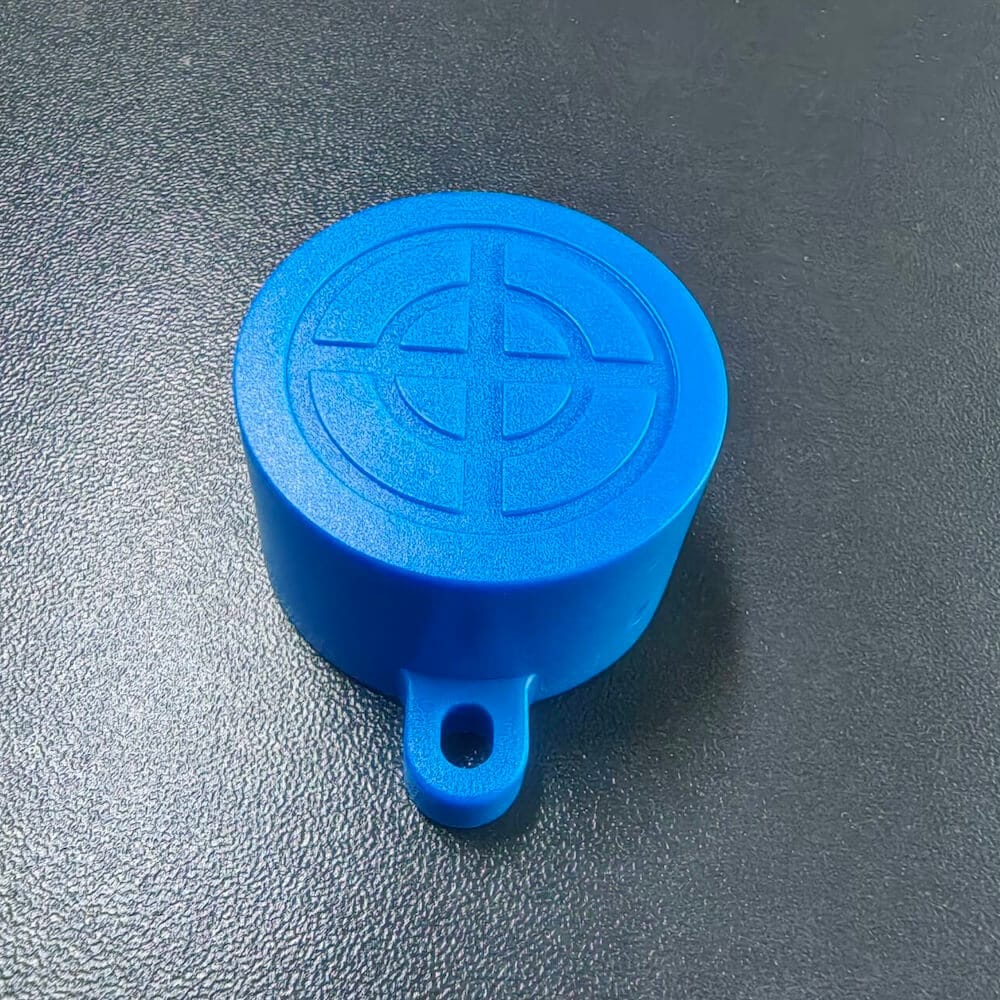

LS42 Inductive Proximity Sensor | 20mm Non-flush, 10-30VDC/90-250VAC
LS42 inductive proximity sensor with 20mm non-flush sensing range, plastic housing, and IP67 protection. Features high-speed response (200Hz DC), PNP/NPN output, and dual power supply for reliable metal detection in automation systems.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

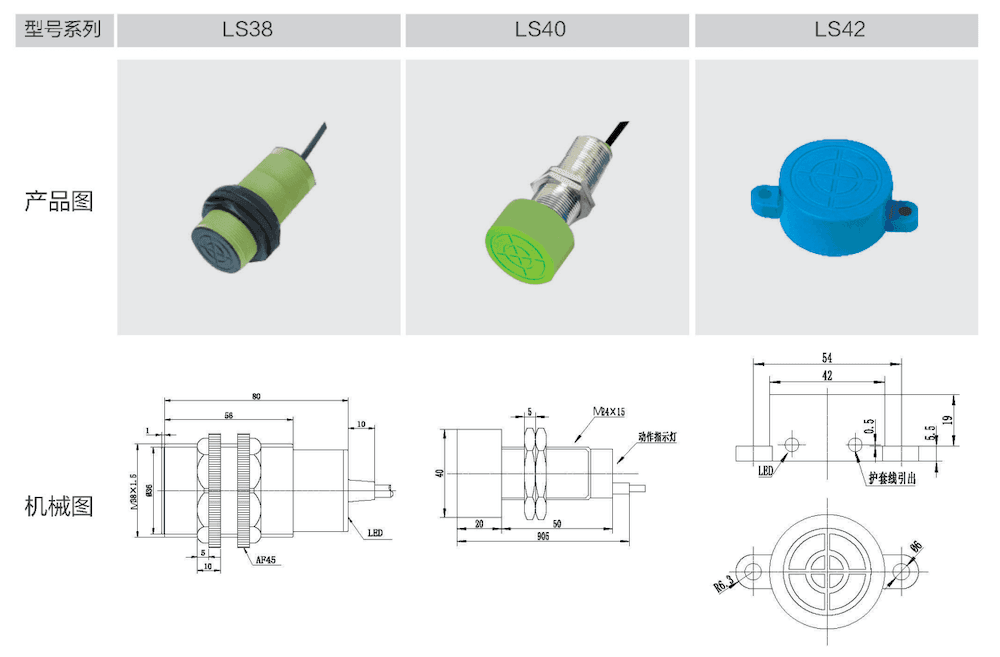

LS38 & LS42 Inductive Proximity Sensors – Plastic Housing Series
The LS38 and LS42 inductive proximity sensors are non-contact metal detection solutions with durable plastic housings, designed for flexible and reliable performance in industrial automation. With dual power supply compatibility, configurable output options, and IP67-rated protection, these sensors adapt to diverse application requirements with consistent accuracy.
Key Features (Series Common)
- Dual Power Supply Compatibility: Supports 10…30VDC or 90…250VAC for flexible integration into different industrial systems
- Flexible Output Options: Configurable PNP/NPN digital outputs with NO/NC/NO+NC switch states available
- Durable Construction: Plastic housing with IP67 protection grade, resistant to dust, moisture, and common industrial contaminants
- Wiring Flexibility: Available in cable or connector versions for convenient on-site installation and maintenance
Technical Specifications (Side-by-Side Comparison)
| Parameter | LS38 | LS42 |
|---|---|---|
| Product Model | LS38 | LS42 |
| Power Supply | 10…30VDC / 90…250VAC | 10…30VDC / 90…250VAC |
| Output Type | PNP / NPN | PNP / NPN |
| Switch State | NO / NC / NO+NC | NO / NC / NO+NC |
| Sensing Distance | 12mm / 18mm | 20mm |
| Output Current | ≤200mA | ≤200mA |
| Voltage Drop | DC: <4V; AC: <10V | DC: <4V; AC: <10V |
| Current Consumption | <15mA | <15mA |
| Repeat Accuracy | <3% of sensing distance | <3% of sensing distance |
| Response Frequency | 100Hz (DC) / 10Hz (AC) | 200Hz (DC) / 10Hz (AC) |
| Operating Temperature | -25℃ ~ +70℃ | -25℃ ~ +70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 |
| Mounting Type | Flush / Non-flush | Non-flush |
| Wiring Method | Cable / Connector | Cable / Connector |
Applications
These inductive sensors are widely used in:
- Conveyor line metal object detection
- Packaging machinery position control
- Automated assembly lines
- Material handling equipment
- General industrial automation systems
Customization of specifications (e.g., special cable lengths, output configurations) is available to meet your specific application requirements. Contact us to discuss your project needs.
