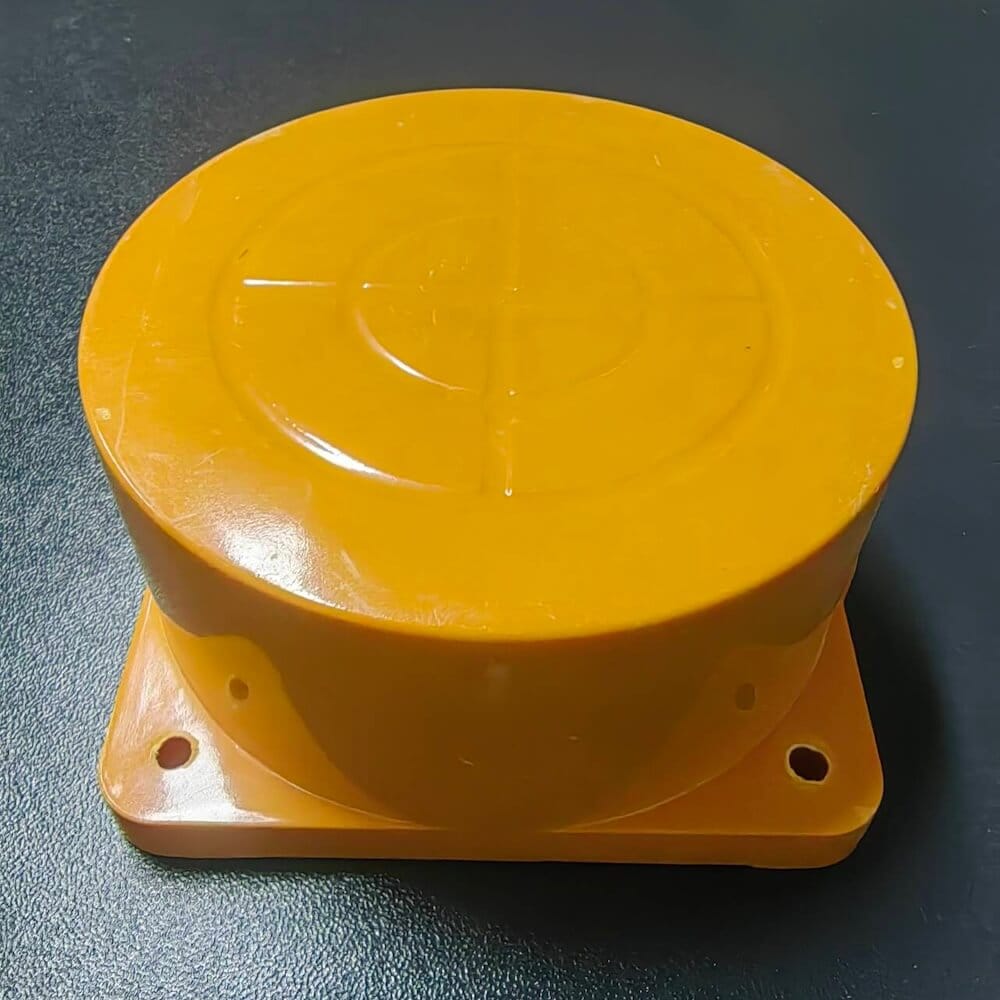

LU39 Linear Inductive Proximity Sensor 50mm
LU39 linear inductive proximity sensor features 50mm long sensing distance, supporting 10-30VDC / 90-250VAC dual voltage. Equipped with PNP/NPN output and NO/NC/NO+NC optional mode, it runs at 50Hz/10Hz response frequency. IP67 waterproof and dustproof with plastic housing, non-flush mounting and cable/connector wiring, suitable for long-range metal position detection in industrial automation.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The LU39 linear inductive proximity sensor is specially developed for long-distance metal detection scenarios. It supports 10…30VDC and 90…250VAC dual wide voltage input, adapting to various complex power supply conditions on industrial sites.
With 50mm fixed sensing distance and 50Hz/10Hz dual response frequency, it keeps repeat accuracy within 3%. PNP/NPN output and NO/NC/NO+NC optional modes bring flexible installation and matching options. IP67 protection grade and plastic housing ensure stable performance in dusty and humid environments, adopting non-flush mounting with cable or connector wiring available.
This sensor complies with international standards: GB/T14048.10-2016 / IEC60947-5-2:2012.
Technical Parameters
Technical Parameters
| Item | LU39 | LU40 | LU41 |
|---|---|---|---|
| Product Model | LU39 | LU40 | LU41 |
| Supply Voltage | 10…30VDC/90…250VAC | 10…30VDC/90…250VAC | 10…30VDC/90…250VAC |
| Switch Output | PNP/NPN | PNP/NPN | PNP/NPN |
| Output Status | NO/NC/NO+NC | NO/NC/NO+NC | NO/NC/NO+NC |
| Sensing Distance | 50mm | 80mm | 120mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% | ＜3% |
| Response Frequency | 50Hz/10Hz | 10Hz/5Hz | 10Hz/5Hz |
| Operating Temperature | －25℃~+70℃ | －25℃~+70℃ | －25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush Mount | Non-flush Mount | Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2012 | GB/T14048.10-2016 / IEC60947-5-2012 | GB/T14048.10-2016 / IEC60947-5-2012 |
