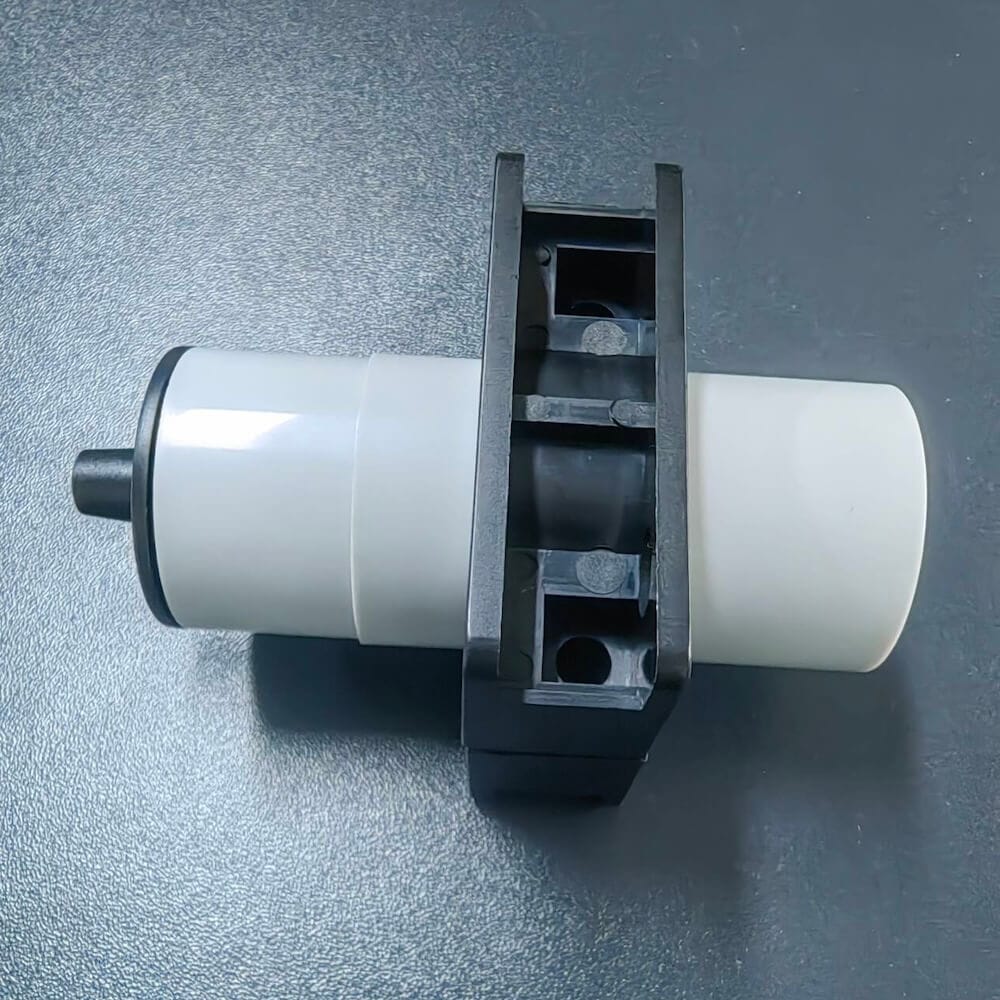

LS34 Inductive Proximity Sensor | 17mm Non-flush, 10-30VDC/90-250VAC
LS34/35 inductive proximity sensor with 17mm non-flush sensing range, plastic housing, and IP67 protection. Supports PNP/NPN output, NO/NC/NO+NC states, and dual power supply for reliable metal detection in industrial automation.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details

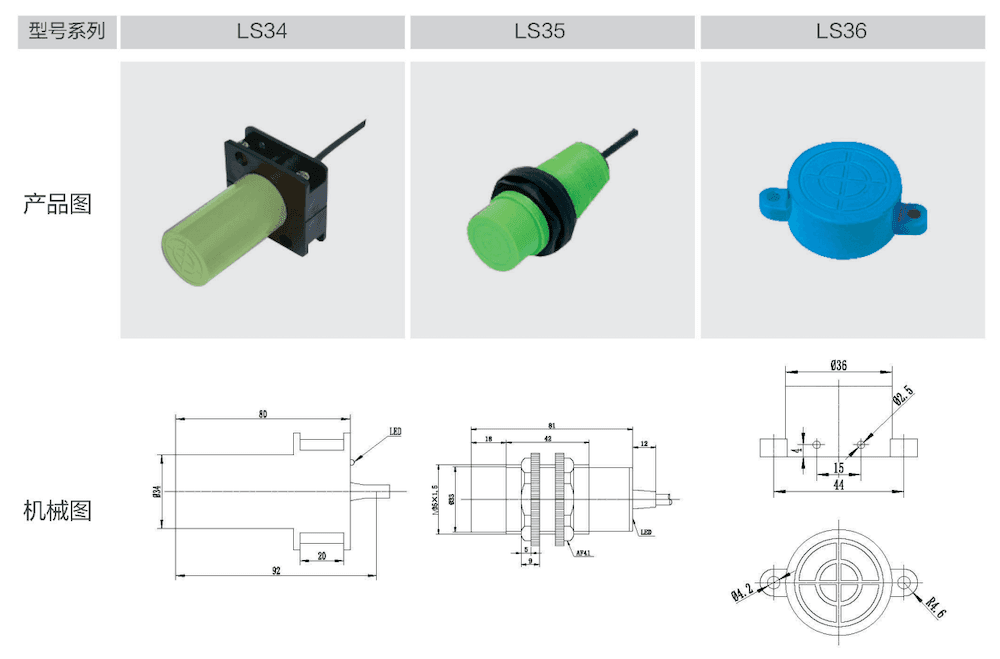

LS34 / LS35 / LS36 Inductive Proximity Sensors – Non-flush Plastic Series
The LS34, LS35, and LS36 series inductive proximity sensors are non-flush mount metal detection solutions with plastic housings, designed for reliable performance in industrial automation applications. With dual power supply compatibility, PNP/NPN output options, and IP67-rated protection, these sensors deliver consistent detection of metal objects in diverse environments.
Key Features (Series Common)
- Dual Power Supply Compatibility: Supports 10…30VDC or 90…250VAC for flexible integration into different industrial systems
- Flexible Output Options: Configurable PNP/NPN digital outputs with NO/NC/NO+NC switch states available
- Non-flush Mount Design: Optimized for surface installation, suitable for equipment where flush mounting is not required
- Durable Construction: Plastic housing with IP67 protection grade, resistant to dust, moisture, and common industrial contaminants
- Wiring Flexibility: Available in cable or connector versions for convenient on-site installation and maintenance
Technical Specifications (Side-by-Side Comparison)
| Parameter | LS34 | LS35 | LS36 |
|---|---|---|---|
| Product Model | LS34 | LS35 | LS36 |
| Power Supply | 10…30VDC / 90…250VAC | 10…30VDC / 90…250VAC | 10…30VDC / 90…250VAC |
| Output Type | PNP / NPN | PNP / NPN | PNP / NPN |
| Switch State | NO / NC / NO+NC | NO / NC / NO+NC | NO / NC / NO+NC |
| Sensing Distance | 17mm | 17mm | 15mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Voltage Drop | DC: <4V; AC: <10V | DC: <4V; AC: <10V | DC: <4V; AC: <10V |
| Current Consumption | <15mA | <15mA | <15mA |
| Repeat Accuracy | <3% of sensing distance | <3% of sensing distance | <3% of sensing distance |
| Response Frequency | 100Hz (DC) / 10Hz (AC) | 100Hz (DC) / 10Hz (AC) | 200Hz (DC) / 10Hz (AC) |
| Operating Temperature | -25℃ ~ +70℃ | -25℃ ~ +70℃ | -25℃ ~ +70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush | Non-flush | Non-flush |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
Applications
These non-flush inductive sensors are widely used in:
- Conveyor line metal object detection
- Packaging machinery position control
- Automated assembly lines
- Material handling equipment
- General industrial automation systems
Customization of specifications (e.g., special cable lengths, output configurations) is available to meet your specific application requirements. Contact us to discuss your project needs.
