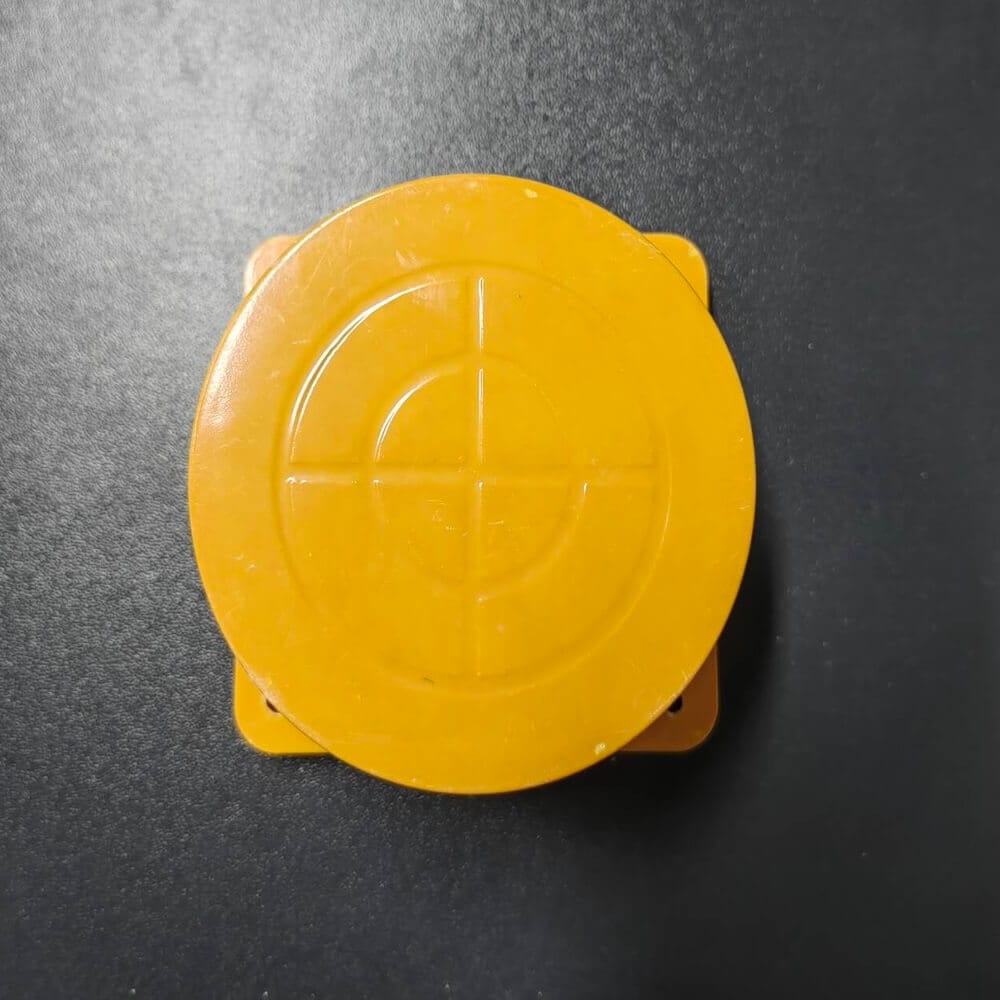

LU41 Linear Inductive Proximity Sensor 120mm
LU41 linear inductive proximity sensor provides 120mm extra long sensing range, compatible with both DC and AC power supply. Optional PNP/NPN output and NO/NC/NO+NC function meet various control demands. Low 10Hz/5Hz response frequency ensures steady detection, IP67 rating and robust plastic housing fit harsh workshop environments perfectly.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
LU41 linear inductive proximity sensor reaches 120mm extra long sensing range, ideal for large automation production lines and heavy machinery detection demands. Wide 10…30VDC/90…250VAC voltage compatibility makes it adaptable to various industrial power grids.
With stable 10Hz/5Hz response frequency and repeat accuracy within 3%, it performs steadily in low-speed detection scenarios. PNP/NPN output and multiple output status options meet diverse wiring and control needs. Plastic housing with IP67 protection, non-flush structure and dual wiring choices ensure convenient installation and long-term reliable operation.
This sensor complies with international standards: GB/T14048.10-2016 / IEC60947-5-2:2012.
Technical Parameters
| Item | LU39 | LU40 | LU41 |
|---|---|---|---|
| Product Model | LU39 | LU40 | LU41 |
| Supply Voltage | 10…30VDC/90…250VAC | 10…30VDC/90…250VAC | 10…30VDC/90…250VAC |
| Switch Output | PNP/NPN | PNP/NPN | PNP/NPN |
| Output Status | NO/NC/NO+NC | NO/NC/NO+NC | NO/NC/NO+NC |
| Sensing Distance | 50mm | 80mm | 120mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% | ＜3% |
| Response Frequency | 50Hz/10Hz | 10Hz/5Hz | 10Hz/5Hz |
| Operating Temperature | －25℃~+70℃ | －25℃~+70℃ | －25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush Mount | Non-flush Mount | Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2012 | GB/T14048.10-2016 / IEC60947-5-2012 | GB/T14048.10-2016 / IEC60947-5-2012 |
