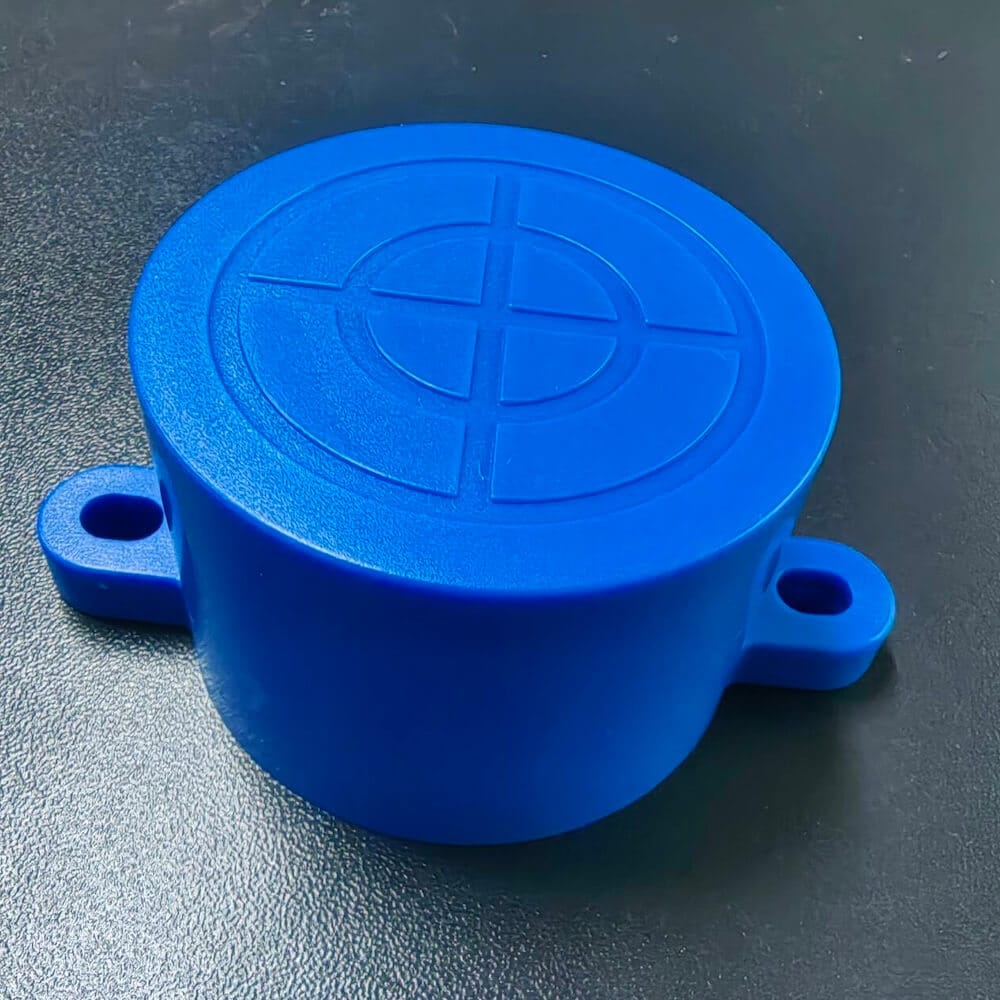

LS55 Inductive Proximity Sensor | 25mm Non-flush, 10-30VDC/90-250VAC
LS55 inductive proximity sensor with 25mm non-flush sensing range, plastic housing, and IP67 protection. Features high-speed response (200Hz DC), PNP/NPN output, and dual power supply for long-range metal detection.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
LS48 / LS55 / LU1 Inductive Proximity Sensors – Plastic Housing Series
The LS48, LS55, and LU1 inductive proximity sensors are compact, non-contact metal detection solutions designed for reliable performance in diverse industrial automation environments. With flexible output options, IP67-rated protection, and support for both DC and AC power (where applicable), these sensors deliver consistent accuracy in metal object detection.
Key Features (Series Common)
- Flexible Power Supply: Supports 10…30VDC for all models; LS48/LS55 also compatible with 90…250VAC for broader integration
- Configurable Output: PNP/NPN output options with NO/NC/NO+NC states (LS48/LS55) or NO/NC states (LU1) to suit different control systems
- Durable Plastic Housing: IP67 protection grade, resistant to dust, moisture, and common industrial contaminants
- Wiring Flexibility: Available in cable or connector versions for convenient on-site installation and maintenance
Technical Specifications (Side-by-Side Comparison)
| Parameter | LS48 | LS55 | LU1 |
|---|---|---|---|
| Product Model | LS48 | LS55 | LU1 |
| Power Supply | 10…30VDC / 90…250VAC | 10…30VDC / 90…250VAC | 10…30VDC |
| Output Type | PNP / NPN | PNP / NPN | PNP / NPN |
| Switch State | NO / NC / NO+NC | NO / NC / NO+NC | NO / NC |
| Sensing Distance | 20mm | 25mm | 5mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Voltage Drop | DC: <4V; AC: <10V | DC: <4V; AC: <10V | DC: <4V; AC: <10V |
| Current Consumption | <15mA | <15mA | <15mA |
| Repeat Accuracy | <3% of sensing distance | <3% of sensing distance | <3% of sensing distance |
| Response Frequency | 200Hz (DC) / 10Hz (AC) | 200Hz (DC) / 10Hz (AC) | 1kHz (DC) |
| Operating Temperature | -25℃ ~ +70℃ | -25℃ ~ +70℃ | -25℃ ~ +70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush | Non-flush | Flush |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
Applications
These inductive sensors are widely used in:
- Conveyor line metal object detection
- Packaging machinery position control
- Automated assembly lines
- Material handling equipment
- General industrial automation systems
Customization of specifications (e.g., special cable lengths, output configurations) is available to meet your specific application requirements. Contact us to discuss your project needs.
