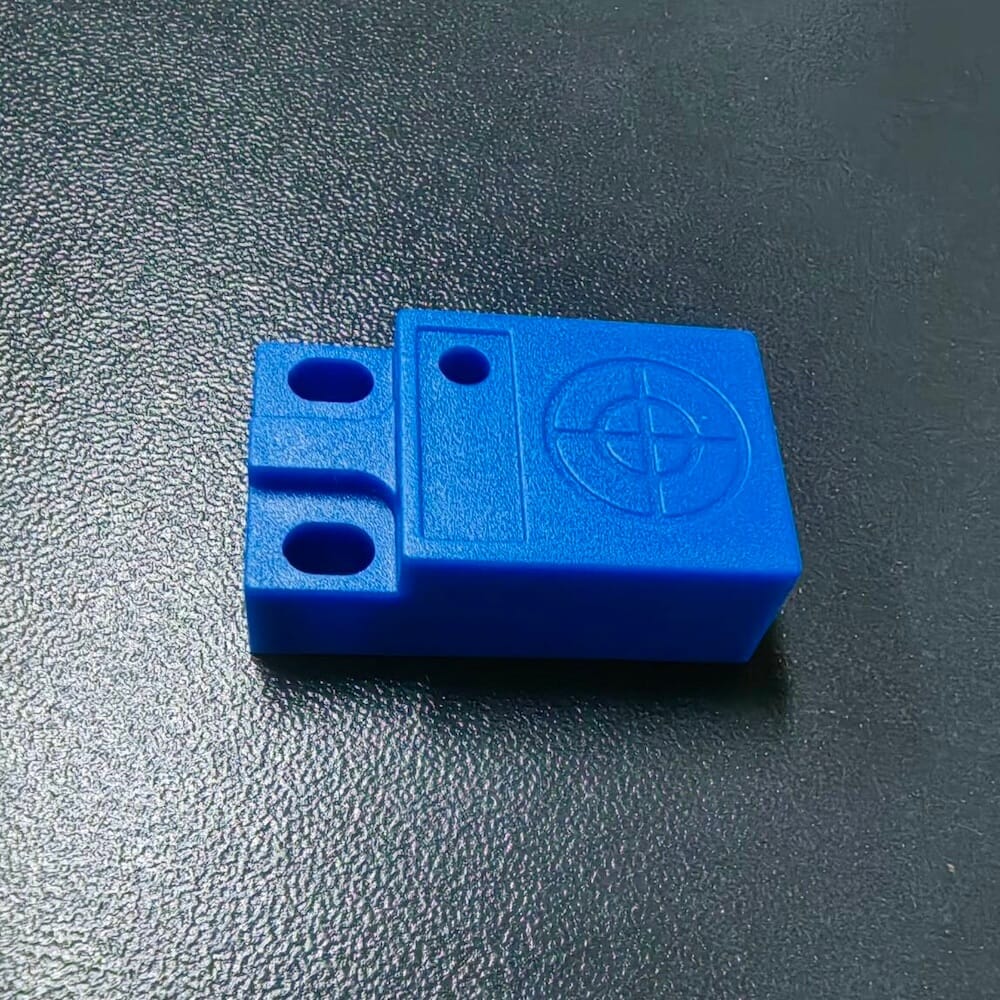

LU25 Linear Inductive Proximity Sensor, 5mm Sensing Distance, 10-30VDC/90-250VAC, IP67
LU25 linear inductive proximity sensor supports 10-30VDC/90-250VAC dual voltage. PNP/NPN output, 5mm sensing distance, 500Hz/10Hz dual response frequency. IP67 protection, non-flush mounting, plastic housing, suitable for complex industrial power supply scenarios.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The LU25 linear inductive proximity sensor supports both DC and AC wide voltage input, suitable for complex power supply occasions in industrial automation. It adopts premium plastic housing with IP67 waterproof and dustproof performance, adapting to severe outdoor and workshop environments. It provides PNP/NPN output and optional NO/NC/NO+NC working modes.
With 5mm fixed sensing distance and dual response frequency 500Hz/10Hz, the LU25 maintains repeat accuracy within 3%. It is designed for non-flush mounting, with cable or connector wiring optional, ideal for metal position detection and automatic control equipment.
This sensor complies with international standards: GB/T14048.10-2016 / IEC60947-5-2:2012.
Technical Parameters
| Item | LU23 | LU24 | LU25 |
|---|---|---|---|
| Product Model | LU23 | LU24 | LU25 |
| Supply Voltage | 10…30VDC | 10…30VDC | 10…30VDC/90…250VAC |
| Switch Output | PNP/NPN | PNP/NPN | PNP/NPN |
| Output Status | NO/NC | NO/NC | NO/NC/NO+NC |
| Sensing Distance | 5mm | 4/5mm | 5mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% | ＜3% |
| Response Frequency | 500Hz | 500Hz | 500Hz/10Hz |
| Operating Temperature | －25℃~+70℃ | －25℃~+70℃ | －25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush Mount | Flush / Non-flush Mount | Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
