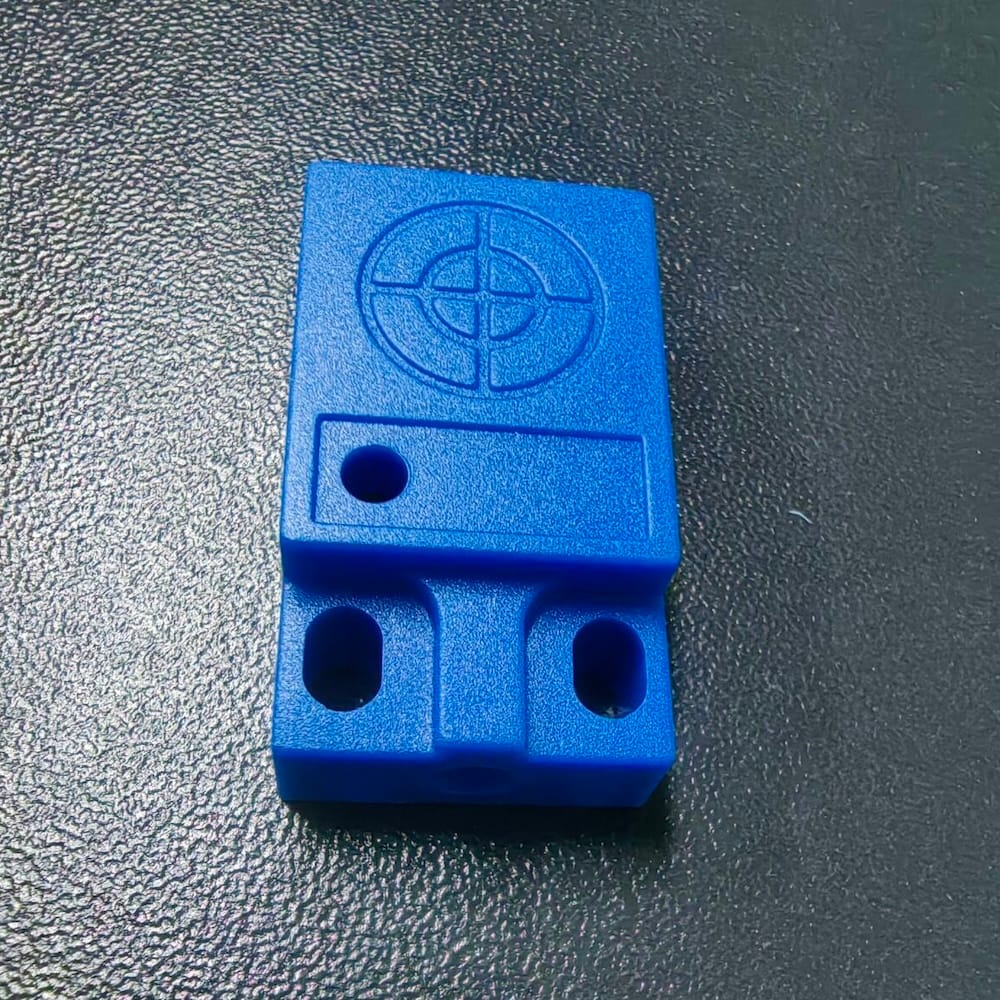

LU24 Linear Inductive Proximity Sensor, 4/5mm Sensing Distance, 10-30VDC, IP67
LU24 linear inductive proximity sensor offers precise metal detection for automation systems. 10-30VDC power supply, PNP/NPN output, 4/5mm sensing distance, 500Hz high response frequency. IP67 waterproof dustproof, flush/non-flush mounting, easy to integrate into industrial machinery.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The LU24 linear inductive proximity sensor is a versatile model for precise metal detection in automation systems. It adopts high-strength plastic housing with IP67 protection grade, adapting to complex industrial working conditions. Equipped with 10-30VDC wide voltage input, it supports PNP/NPN output and NO/NC output status for diverse control requirements.
It features 4/5mm sensing distance and up to 500Hz high response frequency, with ultra-low repeat accuracy within 3%. The LU24 supports both flush and non-flush mounting, with cable and connector optional wiring, easy to install and match for various industrial machinery and automated lines.
This sensor complies with international standards: GB/T14048.10-2016 / IEC60947-5-2:2012.
Technical Parameters
| Item | LU23 | LU24 | LU25 |
|---|---|---|---|
| Product Model | LU23 | LU24 | LU25 |
| Supply Voltage | 10…30VDC | 10…30VDC | 10…30VDC/90…250VAC |
| Switch Output | PNP/NPN | PNP/NPN | PNP/NPN |
| Output Status | NO/NC | NO/NC | NO/NC/NO+NC |
| Sensing Distance | 5mm | 4/5mm | 5mm |
| Output Current | ≤200mA | ≤200mA | ≤200mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% | ＜3% |
| Response Frequency | 500Hz | 500Hz | 500Hz/10Hz |
| Operating Temperature | －25℃~+70℃ | －25℃~+70℃ | －25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ | ≥50MΩ |
| Housing Material | Plastic | Plastic | Plastic |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 | IP67 |
| Mounting Type | Non-flush Mount | Flush / Non-flush Mount | Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
