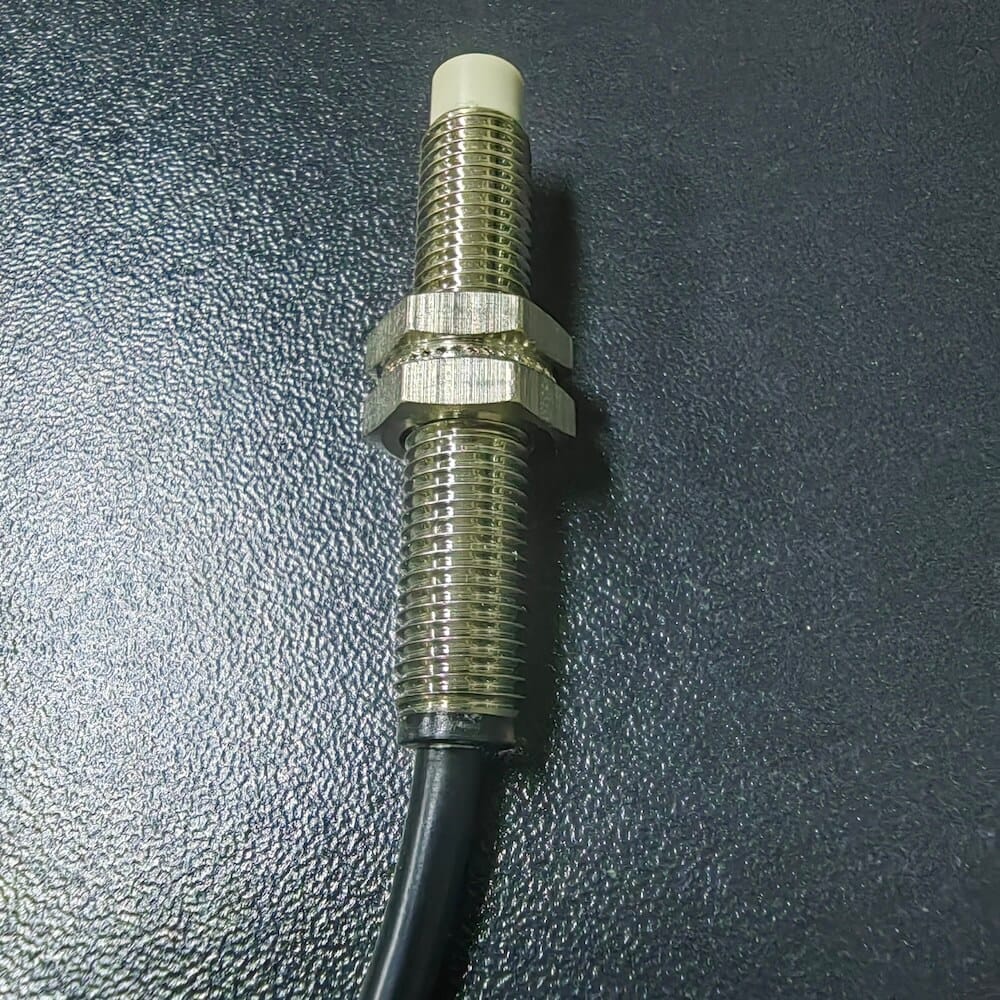

LS6 M6 Inductive Proximity Sensor 1/2mm 10-30VDC IP67 | Hongston
High-precision LS6 inductive proximity sensor with dual sensing distances (1mm/2mm), supporting 10–30VDC wide voltage input and compatible with PNP/NPN output & NO/NC modes. Featuring fast 2.5KHz response frequency, <3% repeat accuracy and low power consumption. Built with metal housing and IP67 rating, suitable for harsh industrial environments. Available in both flush and non-flush mounting options with cable or connector wiring, ideal for automated machinery, conveyor systems and packaging equipment.
Contact Us for Pricing
Interested in this product? Contact us now for detailed pricing and product information.
Product Details
The LS6 inductive proximity sensor is designed for reliable non-contact detection in industrial automation applications. It supports a wide 10–30VDC power supply, with flexible PNP/NPN output and NO/NC working modes to match diverse control systems. With a dual sensing range of 1mm/2mm, high repeat accuracy (<3%) and a fast response frequency of 2.5KHz, it ensures stable and precise operation.
Built with a robust metal housing and IP67 protection grade, the LS6 withstands dust, moisture and temperature variations from -25℃ to +70℃. It offers both flush and non-flush mounting options, plus cable or connector wiring, for easy installation in machine tools, conveyor lines, packaging equipment and more.
Technical Parameters
| Parameter | LS5 | LS6 |
|---|---|---|
| Product Model | LS5 | LS6 |
| Supply Voltage | 10…30VDC | 10…30VDC |
| Switch Output | PNP/NPN | PNP/NPN |
| Output Status | NO/NC | NO/NC |
| Sensing Distance | 1mm | 1mm / 2mm |
| Output Current | ≤100mA | ≤100mA |
| Output Voltage Drop | DC＜4V, AC＜10V | DC＜4V, AC＜10V |
| Consumption Current | ＜15mA | ＜15mA |
| Repeat Accuracy | ＜3% | ＜3% |
| Response Frequency | 2.5KHz | 2.5KHz |
| Operating Temperature | -25℃~+70℃ | -25℃~+70℃ |
| Insulation Resistance | ≥50MΩ | ≥50MΩ |
| Housing Material | Metal | Metal |
| Protection Grade（Compliant with IEC529 and EN60529 standards） | IP67 | IP67 |
| Mounting Type | Flush Mount | Flush / Non-flush Mount |
| Wiring Method | Cable / Connector | Cable / Connector |
| Compliance Standard | GB/T14048.10-2016 / IEC60947-5-2:2012 | GB/T14048.10-2016 / IEC60947-5-2:2012 |
